Vestil DC-Powered Hydraulic Telescoping Forklift Boom – 8,000 lb Capacity, 24” Fork Pocket Centers

SKU LM-1T-8-24-HBE-DC
$4,989.99
$4,989.99

Estimated shipping time

Shipping times vary based on product availability, manufacturer lead times, destination, and freight requirements. Please see our Shipping Policy for additional information.

What is your Return Policy?

Returns are subject to our Return & Refund Policy, including eligibility requirements, return authorization, shipping responsibilities, and any applicable restocking fees. Please review our full Return & Refund Policy before placing your order.

Product Description

Product Overview

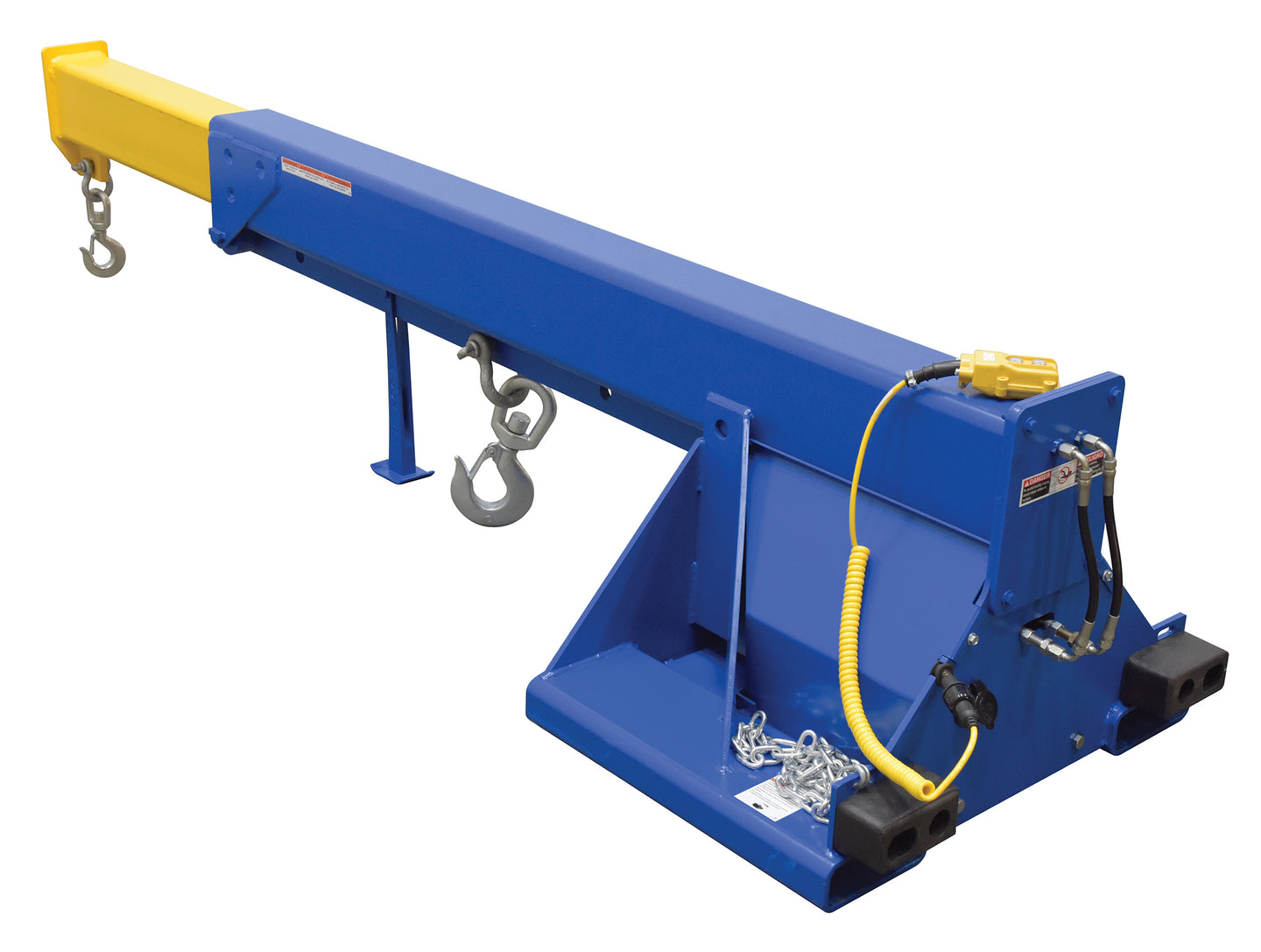

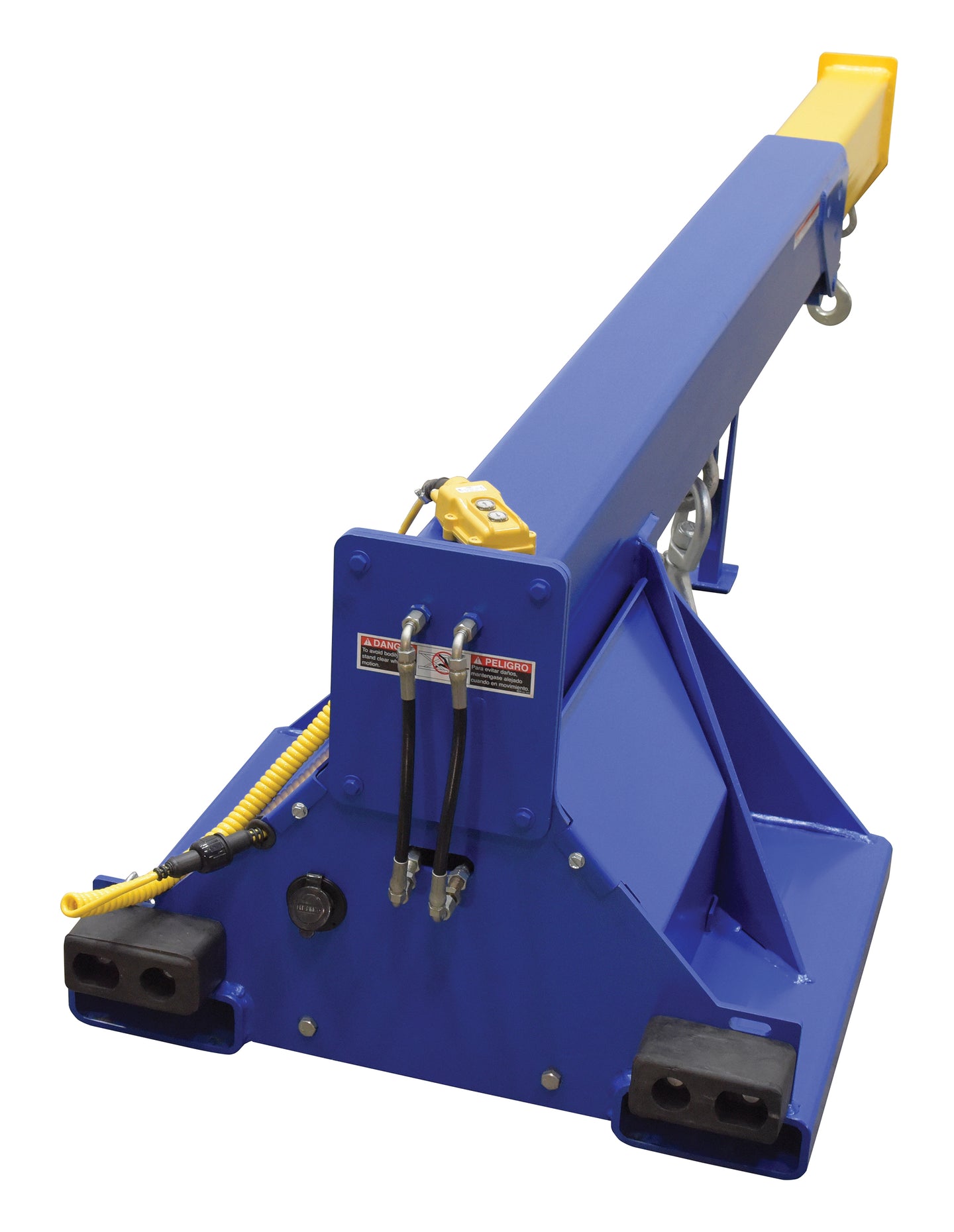

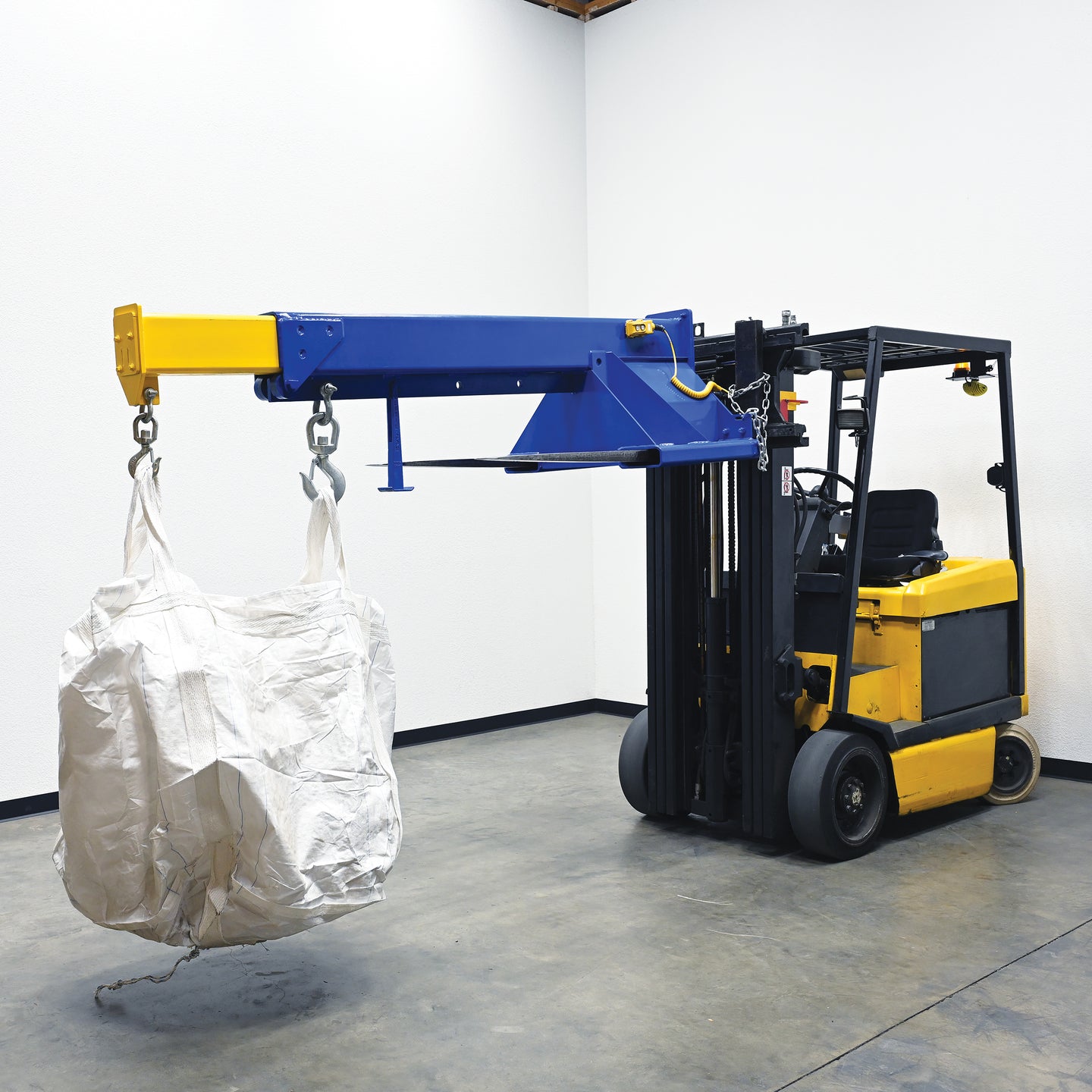

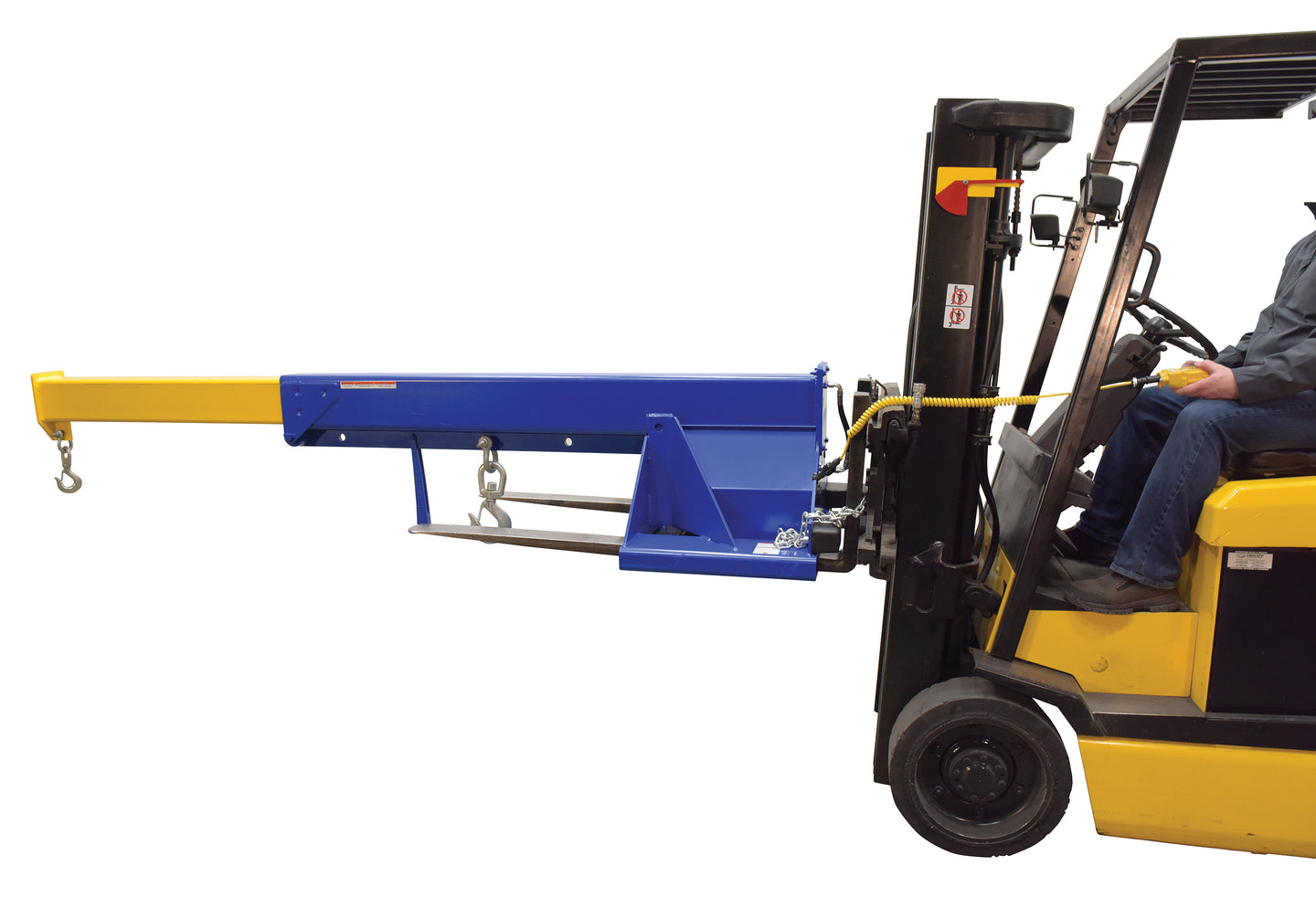

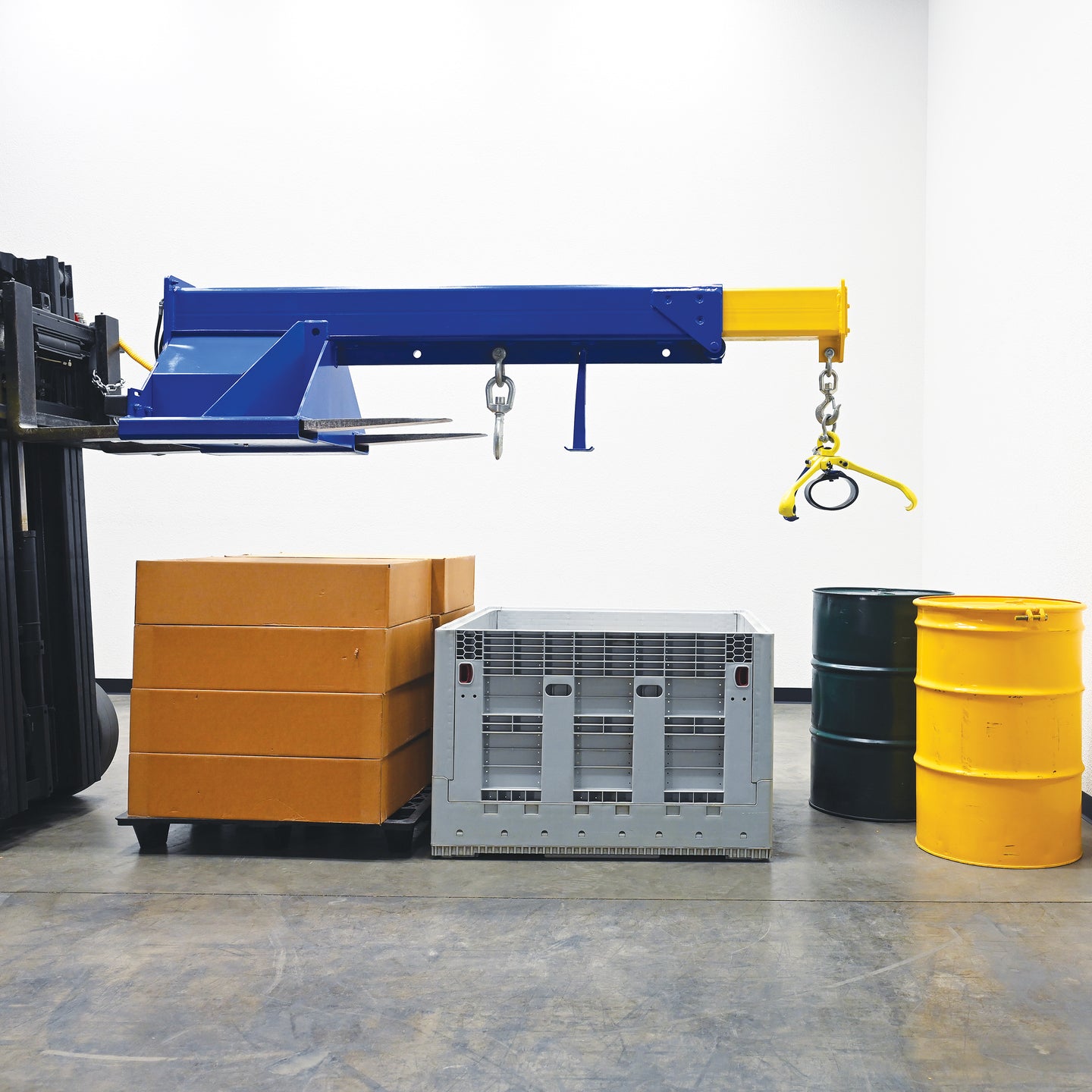

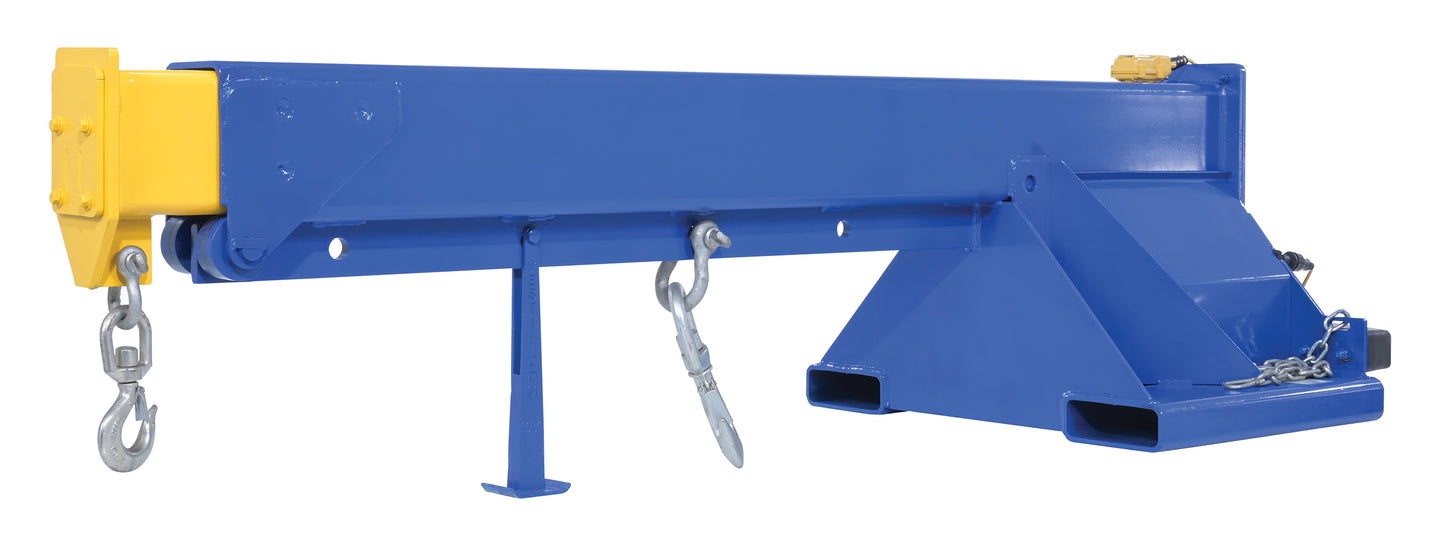

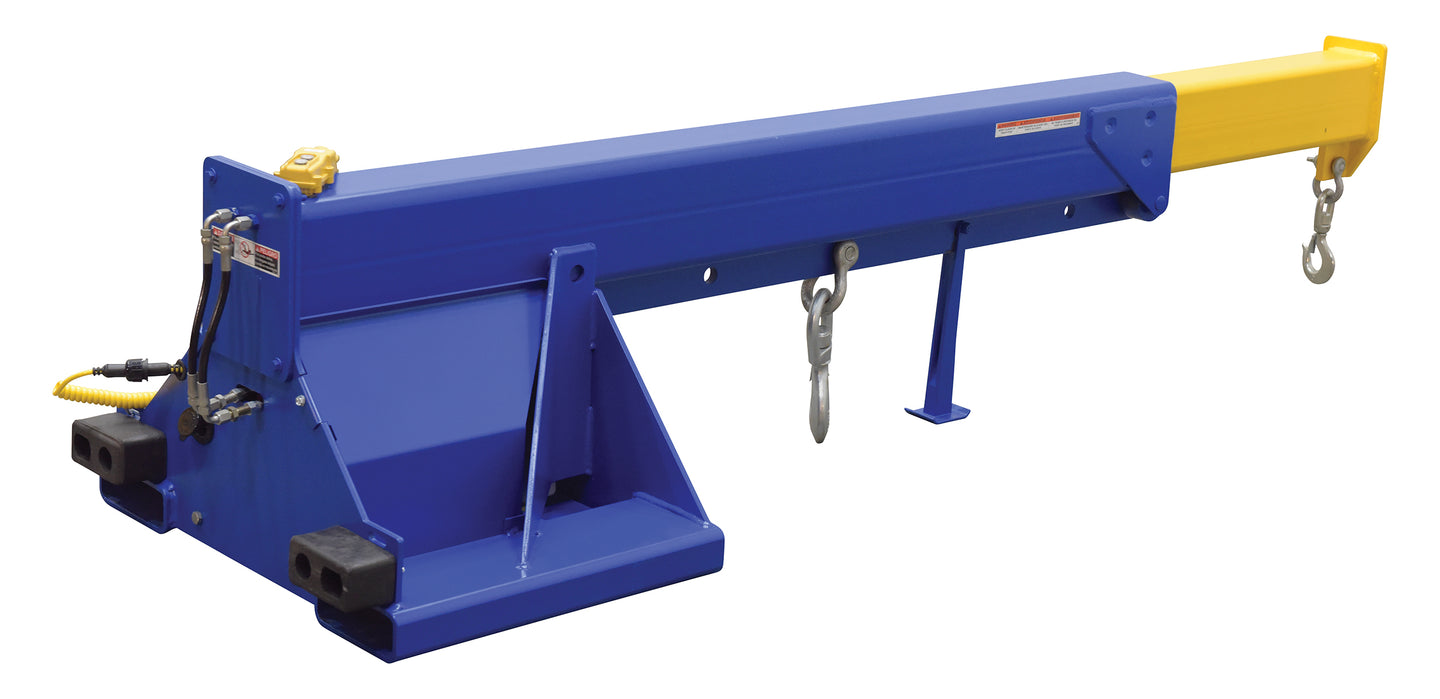

The Vestil LM-1T-8-24-HBE-DC DC-Powered Hydraulic Telescoping Forklift Boom converts a compatible fork truck into a versatile overhead lifting solution for demanding industrial material-handling applications. Its 12V DC-powered telescoping design allows the operator to extend or retract the boom using a handheld control, reducing the manual effort required to adjust boom length. The heavy-duty steel boom features 24” fork pocket centers, includes two lifting hooks, and provides load capacities that vary according to hook position and boom extension.

Specifications

  • Model: LM-1T-8-24-HBE-DC
  • Product Type: DC-Powered Hydraulic Telescoping Forklift Boom
  • Maximum Rated Capacity: 8,000 lb
  • Maximum Movable Load: 2,000 lb
  • Fork Truck Required Rating: 8,000 lb
  • Power Source: 12V DC

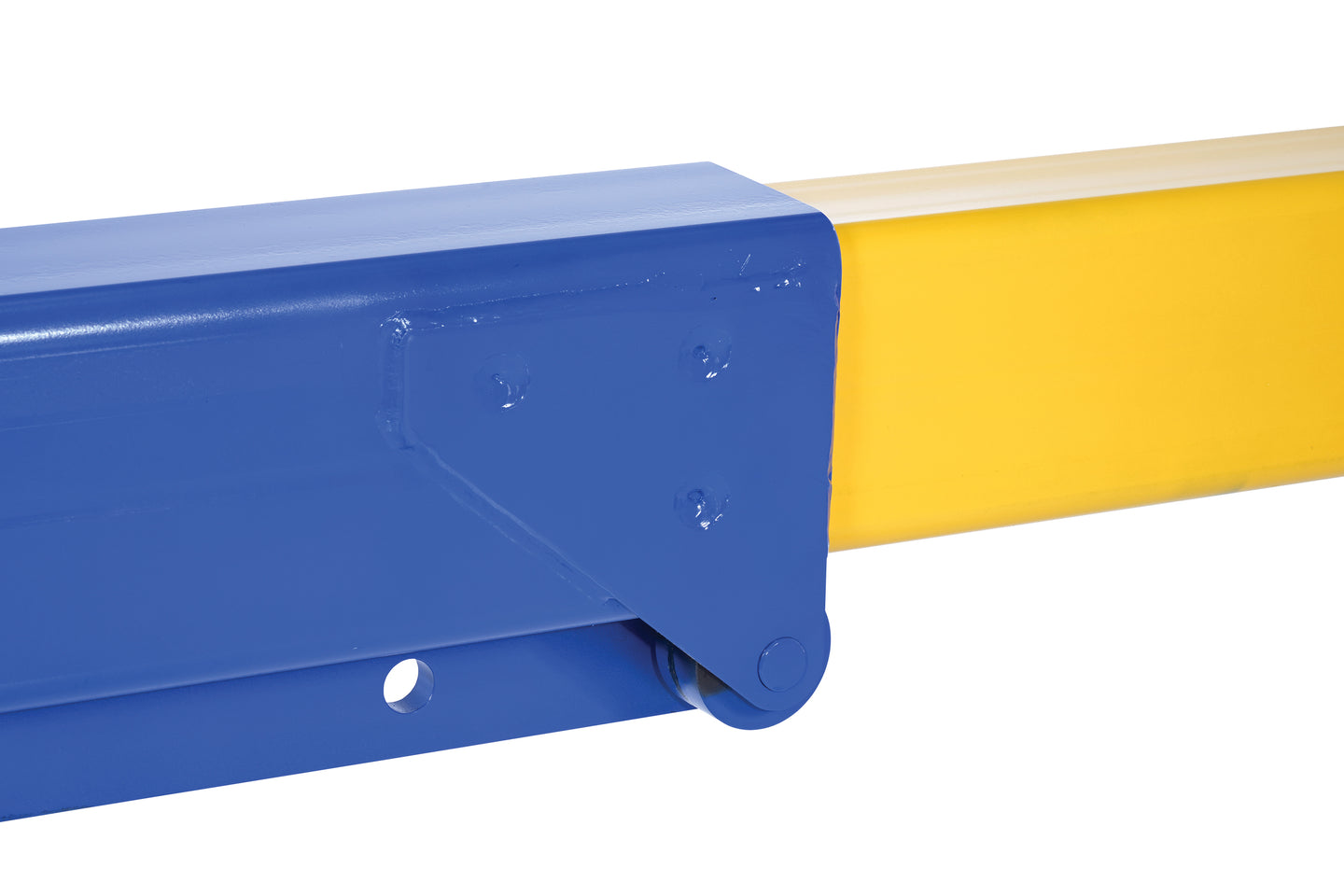

  • Boom Type: Hydraulic Telescoping
  • Retracted Length: 83-3/4”

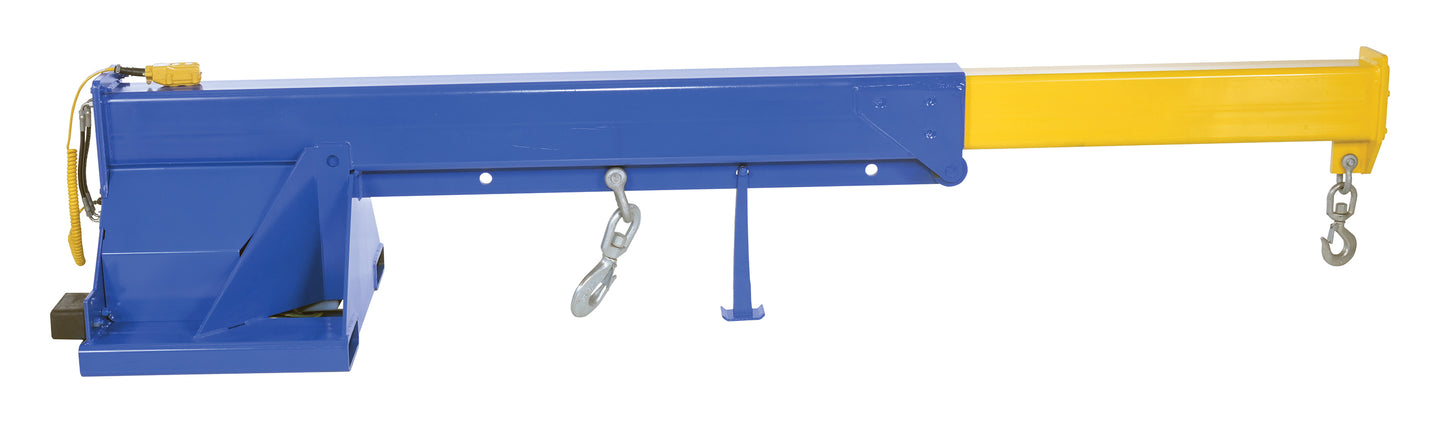

  • Extended Length: 144-3/4”
  • Minimum Hook Point: 36”
  • Maximum Hook Point: 142”
  • Fork Pocket Centers: 24”
  • Usable Fork Pockets: 7-1/4” W × 2-1/4” H
  • Overall Width: 32”
  • Overall Height: 24-1/2”

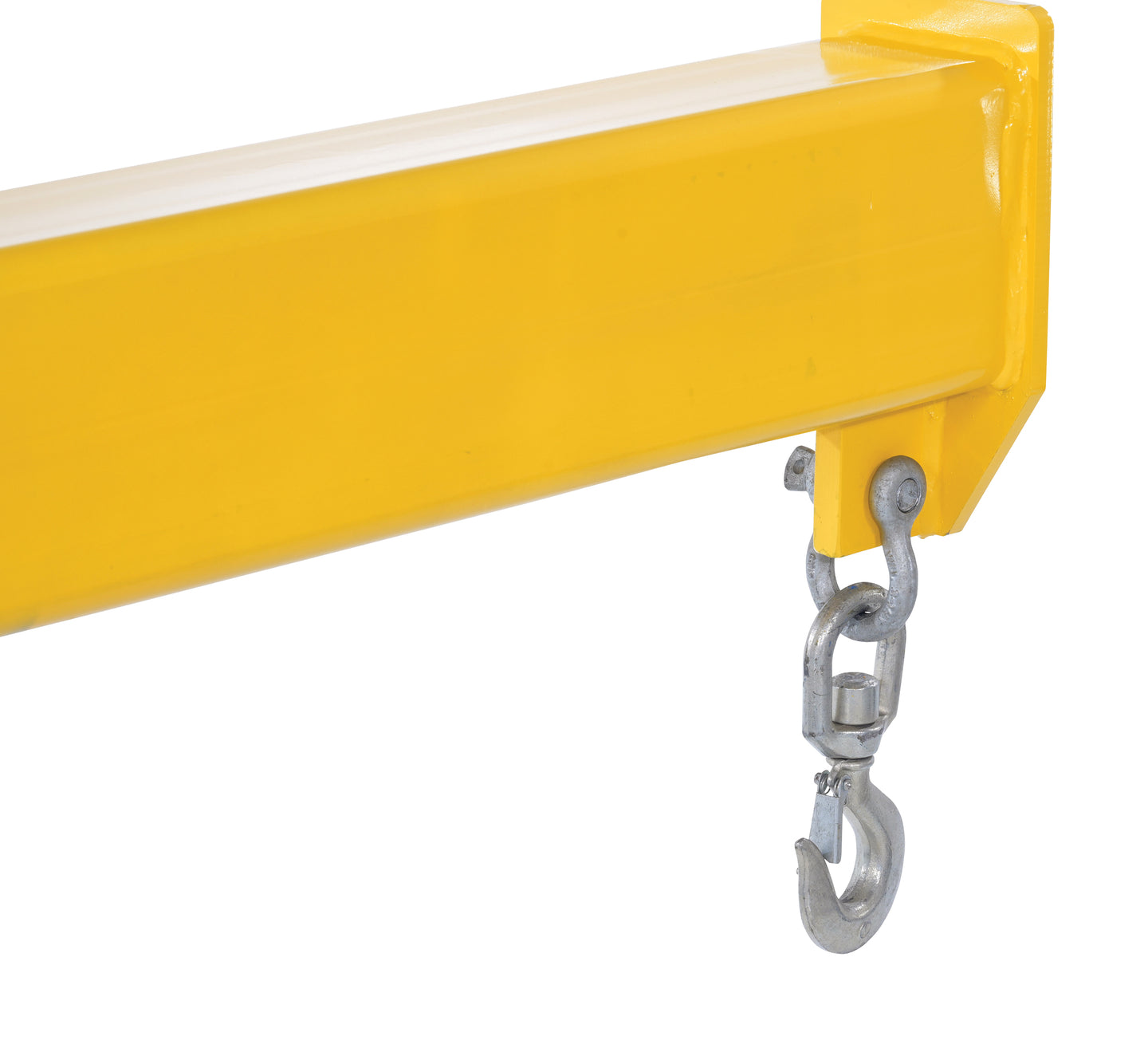

  • Number of Lifting Hooks: 2
  • Lost Load: 815 lb
  • Construction: Steel
  • Frame Finish: Blue Liquid Paint
  • Boom Finish: Yellow Liquid Paint
  • Approximate Shipping Weight: 810 lb

Features

  • 12V DC-powered telescoping boom
  • Handheld control for powered extension and retraction
  • Boom can extend or retract while loaded
  • Maximum rated capacity up to 8,000 lb depending on hook position

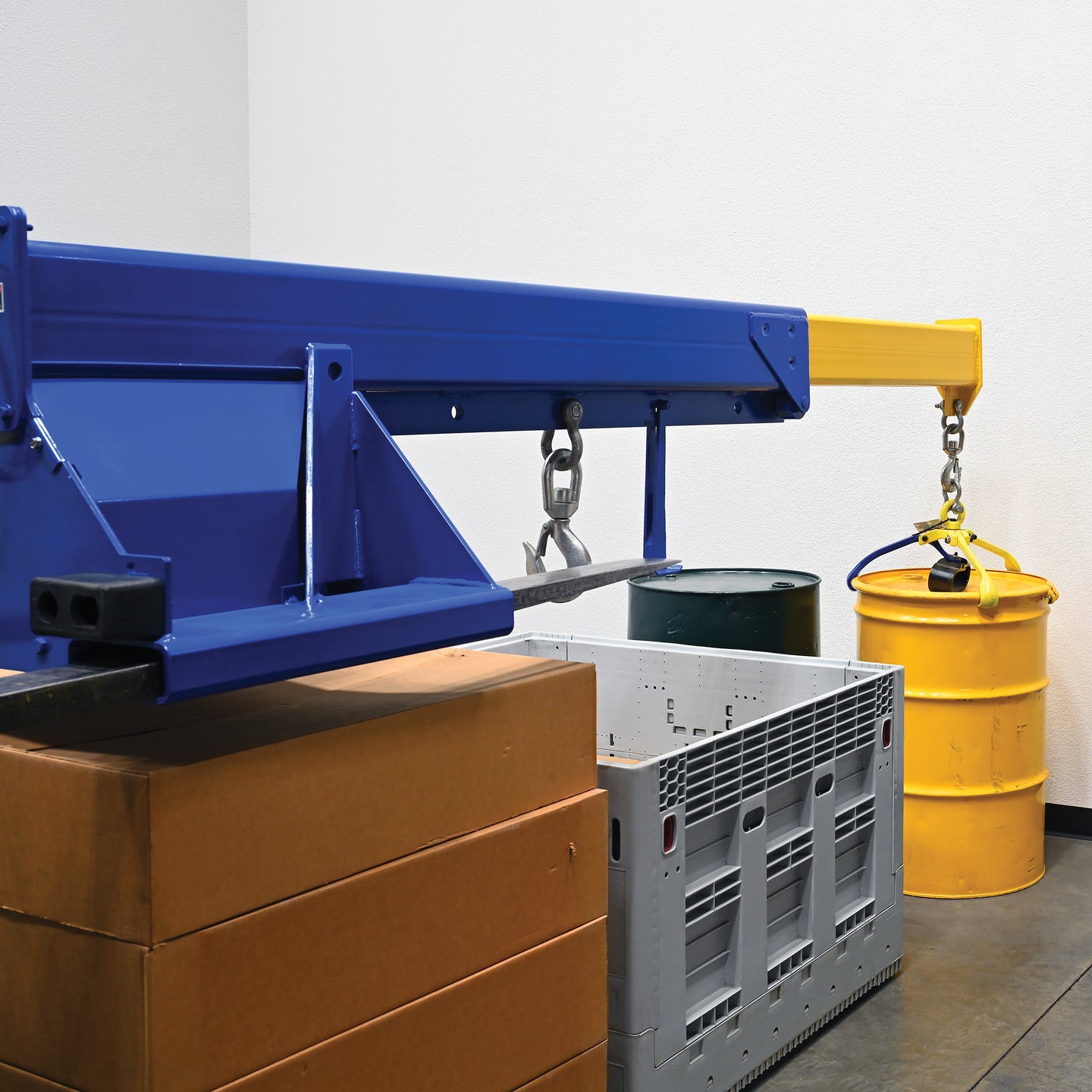

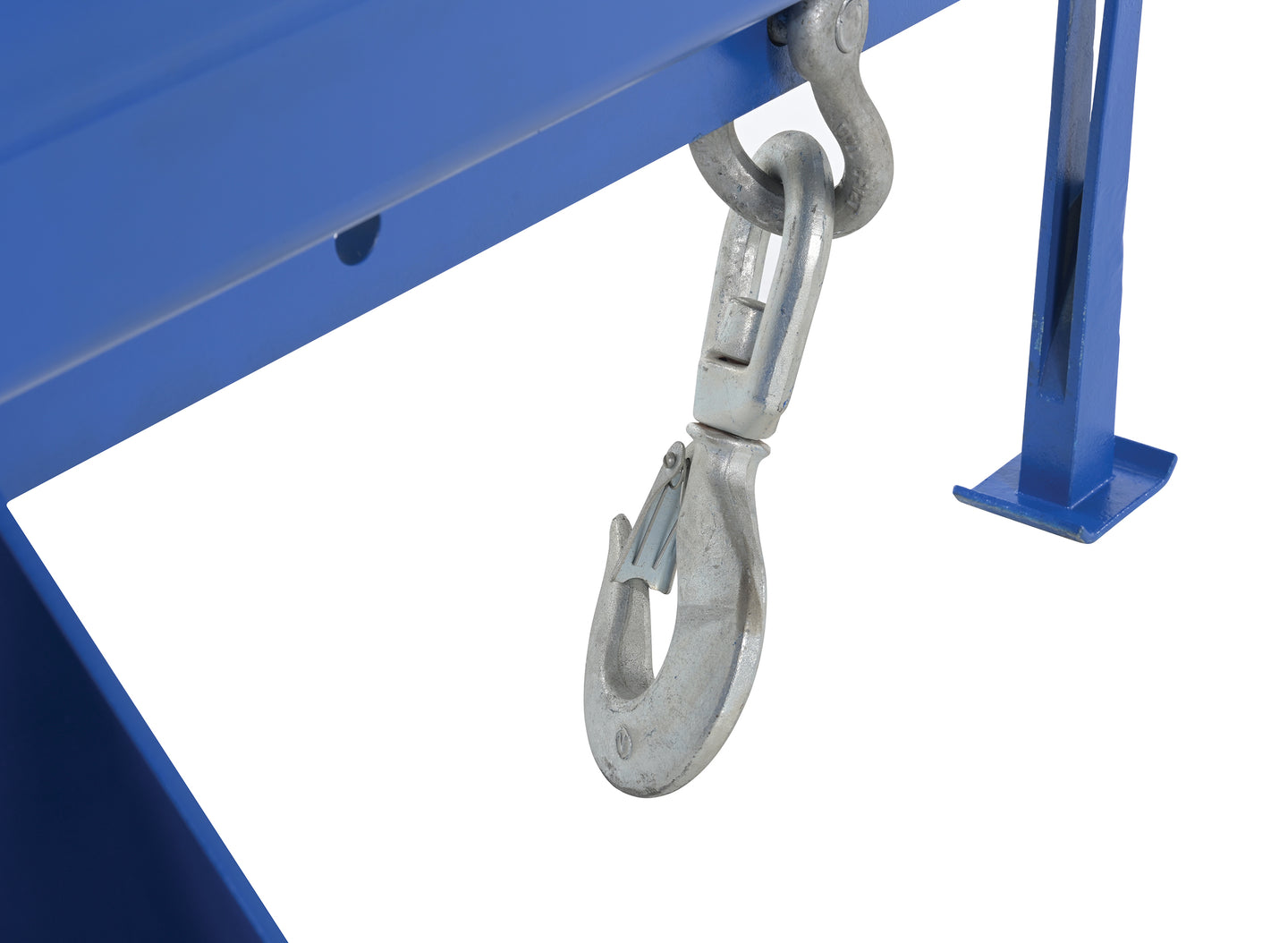

  • Two lifting hooks included
  • Heavy-duty steel construction
  • 24” fork pocket centers

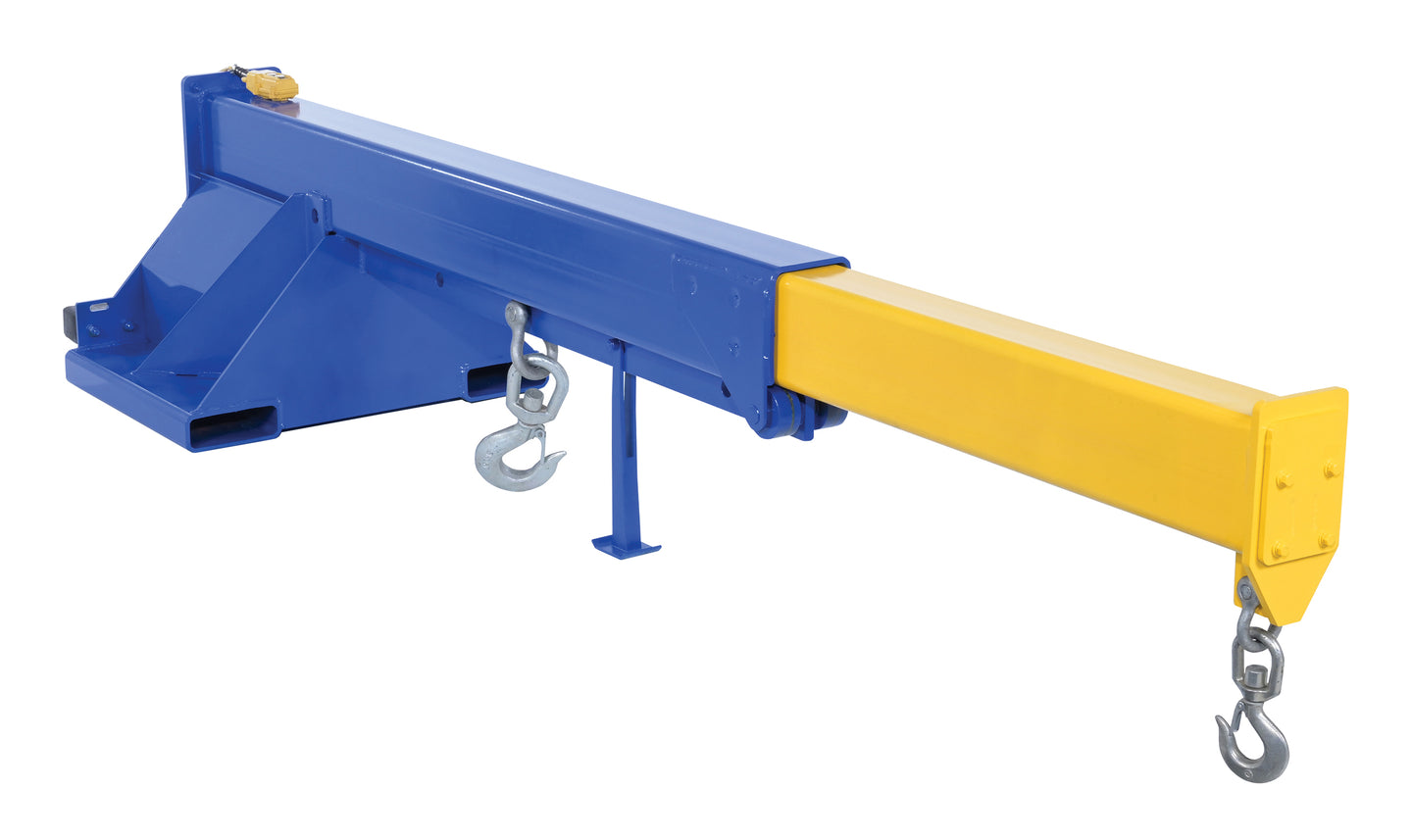

  • Telescoping design provides multiple lifting positions
  • Painted finish helps limit abrasion

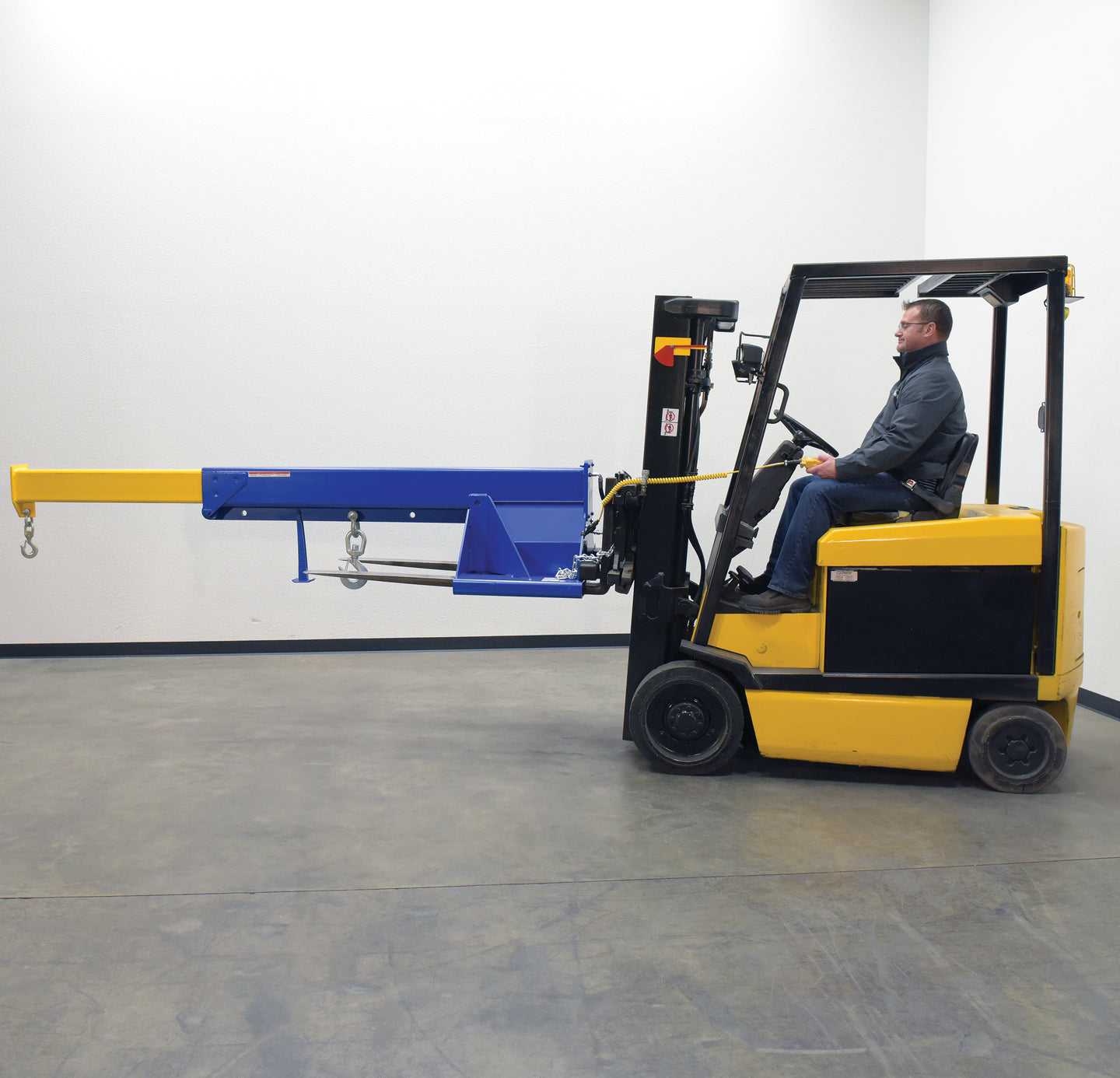

  • Designed to convert compatible fork trucks for overhead lifting applications

Applications

  • Warehouses
  • Manufacturing Facilities
  • Distribution Centers
  • Industrial Material Handling

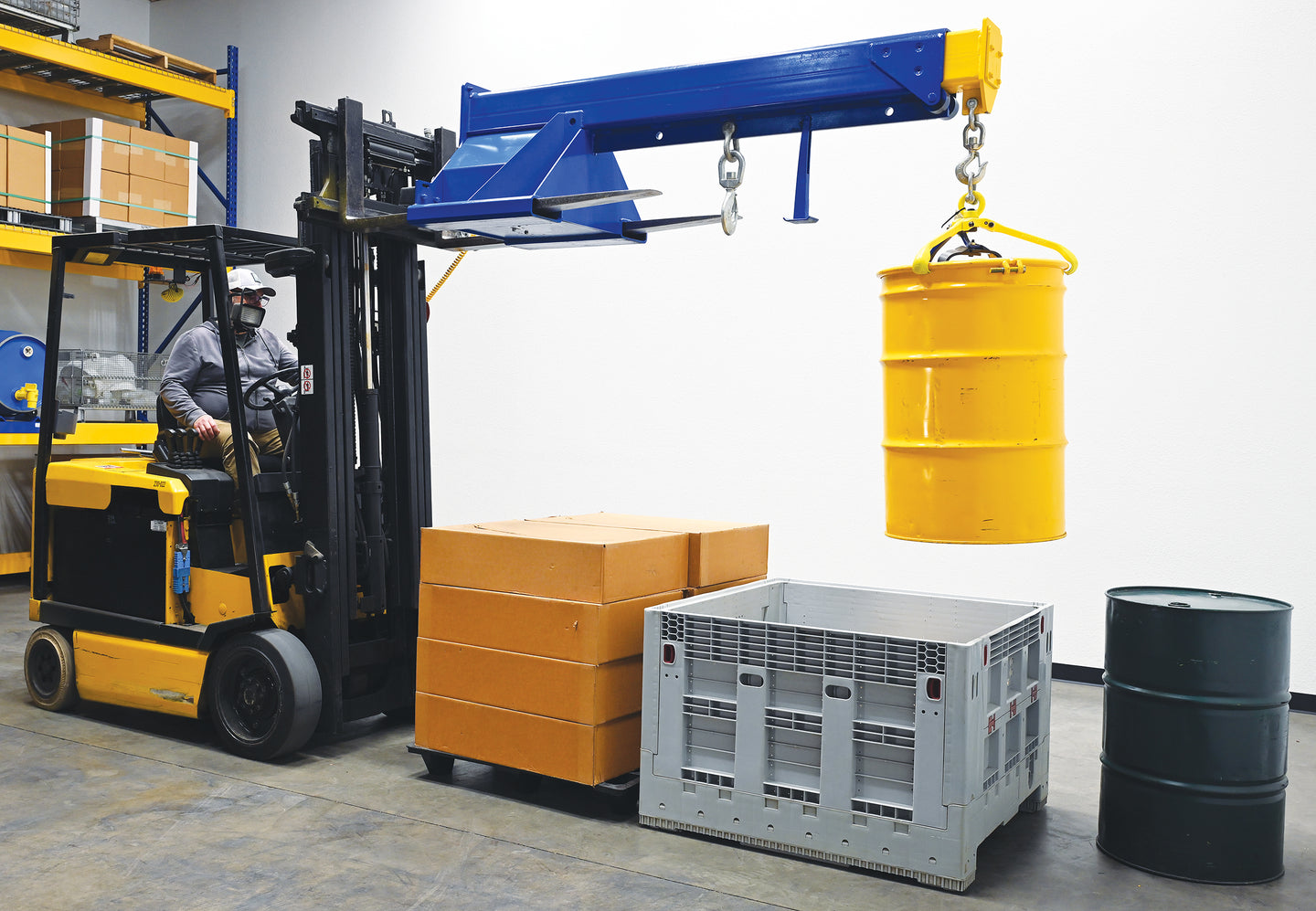

  • Overhead Load Positioning
  • Machinery Handling
  • Maintenance Operations
  • Construction Facilities
  • Equipment Handling
  • Production Facilities

Requires an appropriately rated forklift. Capacity decreases as the hook position moves farther from the forklift. Never exceed the forklift manufacturer’s load-center rating. Verify forklift capacity and attachment compatibility before use.
