Product Description

Product Overview

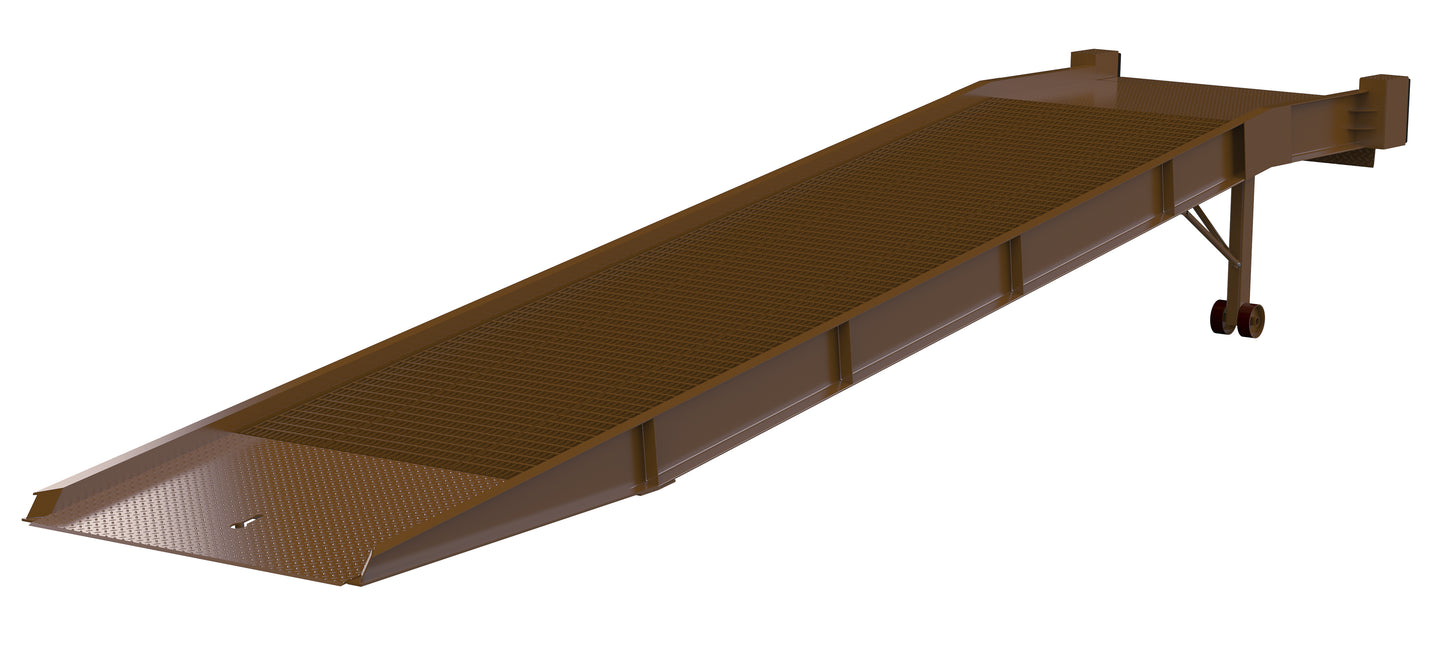

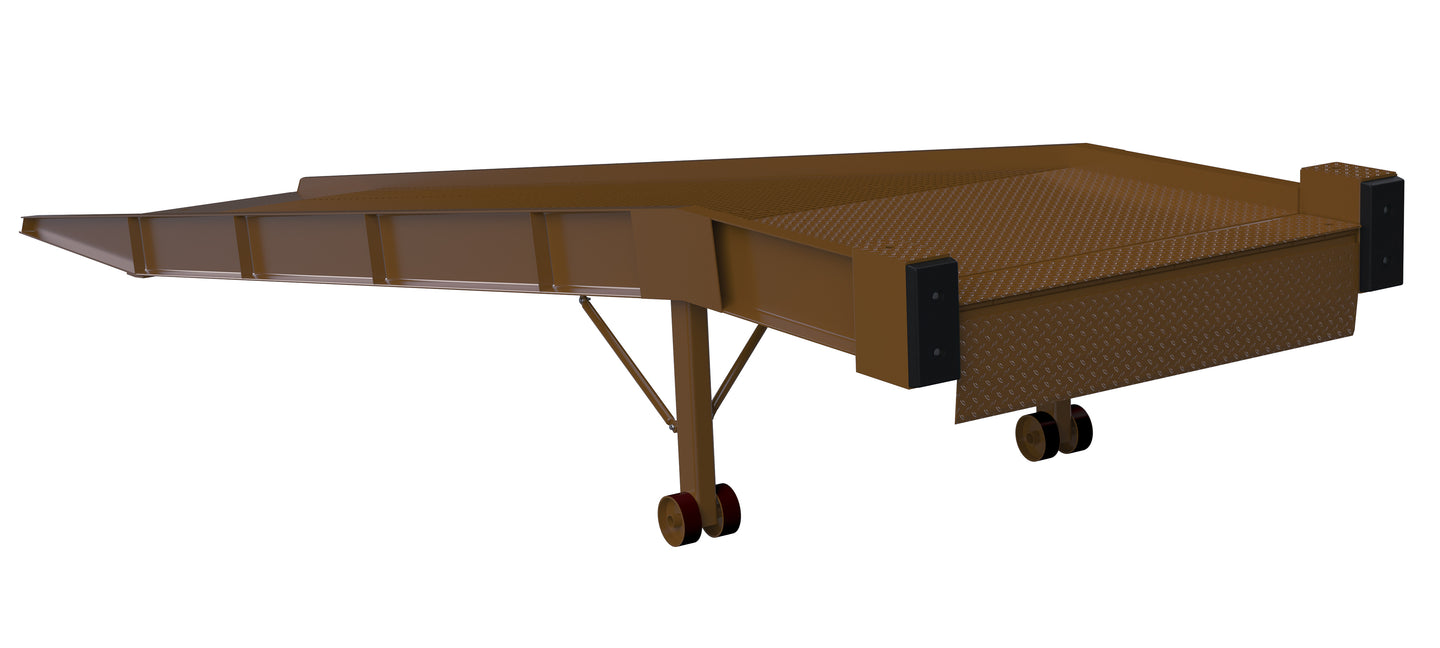

The Vestil Portable Steel Yard Ramp with Hydraulic Dock Leveler provides a heavy-duty ground-to-trailer loading solution for facilities without permanent loading dock access.

Built for demanding industrial environments, the YRD-20-8536-H features a 20,000 lb. uniform capacity, 85-inch overall width, and 36-foot overall length. The ramp allows forklifts to travel between ground level and trucks, trailers, or railcars while its integrated hydraulic Edge-O-Dock leveler helps bridge the transition at the trailer.

Heavy-duty welded steel construction and open steel grating provide durability and positive traction, while high steel side curbs help prevent forklift runoff. Safety locking chains and rubber bumpers help secure the ramp during loading operations. Vestil also incorporates steel wheels and a height-adjustment system to facilitate positioning and accommodate different loading heights.

Key Features

  • 20,000 lb. uniform load capacity
  • 36 ft. overall ramp length
  • 85 in. overall width
  • 78 in. usable ramp width
  • Integrated 75 in. hydraulic dock leveler
  • Heavy-duty welded steel construction
  • Open steel grating provides traction and allows rain, snow, and debris to pass through
  • 4 in. high steel safety curbs help prevent forklift runoff
  • Safety locking chains help secure ramp to trailer
  • Rubber bumpers protect contact points
  • Steel wheels provide portability
  • Adjustable from approximately 45 to 62 in. loading heights
  • Designed for forklift ground-to-trailer loading
  • Earth Tone Brown finish

Applications

  • Warehouses
  • Distribution centers
  • Construction sites
  • Manufacturing facilities
  • Outdoor storage yards
  • Truck and trailer loading
  • Railcar loading
  • Facilities without permanent loading docks

Specifications

  • Model: YRD-20-8536-H
  • Capacity: 20,000 lb.
  • Overall Width: 85 in.
  • Usable Ramp Width: 78 in.
  • Overall Length: 36 ft.
  • Straight Ramp Length: 30 ft.
  • Dock Leveler Width: 75 in.
  • Lowered Height: 45 in.
  • Raised Height: 62 in.
  • Safety Curb Height: 4 in.
  • Material: Steel
  • Ramp Grating: Steel
  • Color: Earth Tone Brown
  • Weight: 7,500 lb.
