Vestil Electric Hydraulic Tandem Scissor Lift Table – 48” × 180”, 2,000 lb Capacity, 58” Raised Height

Product Overview

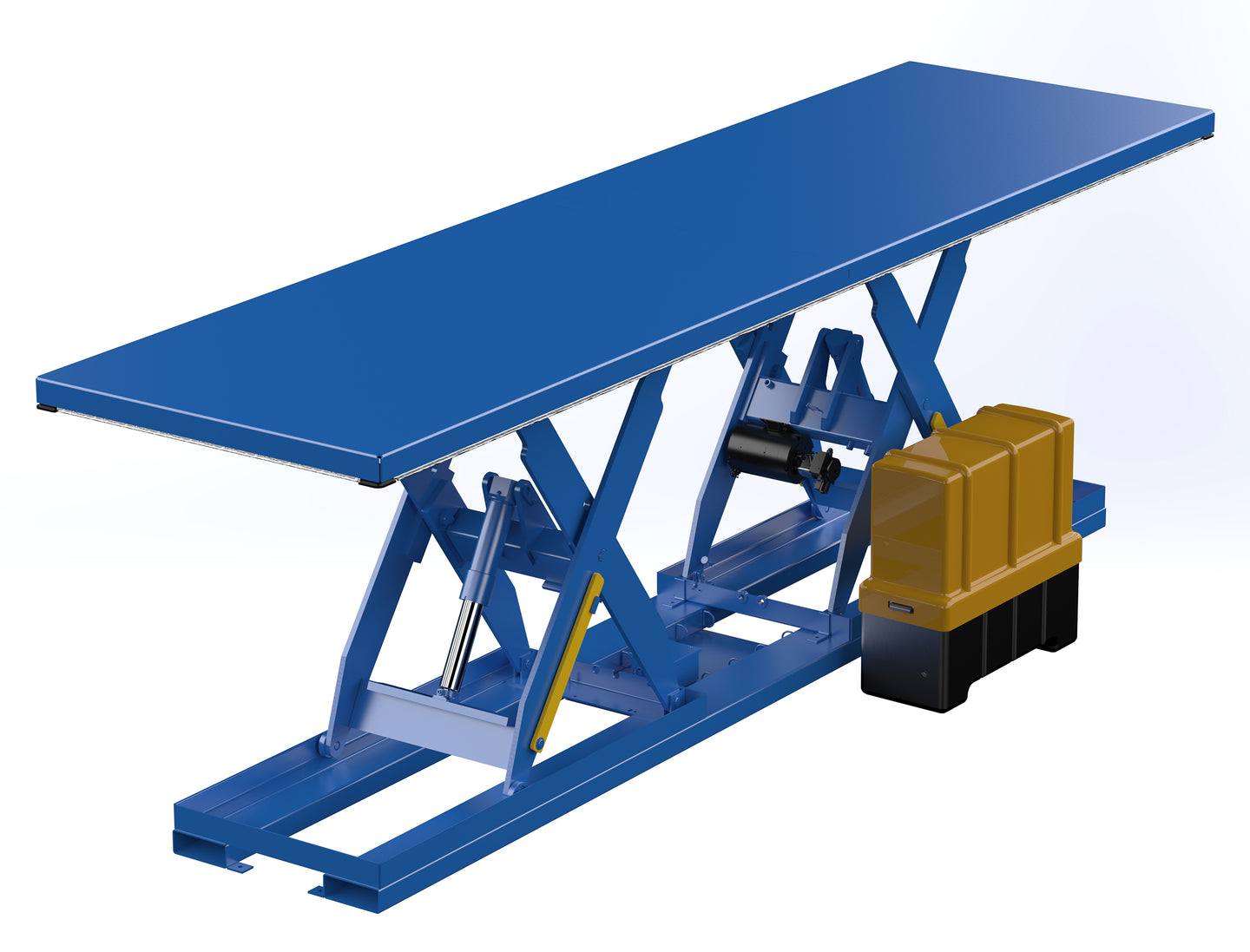

The Vestil EHLT-TL-48180-2-58 Electric Hydraulic Tandem Scissor Lift Table provides a heavy-duty solution for lifting and positioning large, bulky loads in manufacturing and warehouse environments. Its tandem design utilizes dual scissor lifts for added strength while supporting loads up to 2,000 lb across an expansive 48” × 180” platform. The table offers variable height positioning from 10” to 58”, while the open design allows loading and unloading from all sides. A hand control enables the operator to control the lift from a distance, and the unit is powered by 460V three-phase AC power for demanding industrial applications.

Specifications

• Model: EHLT-TL-48180-2-58
• Product Type: Electric Hydraulic Tandem Scissor Lift Table
• Platform Width: 48”
• Platform Length: 180”
• Uniform Capacity: 2,000 lb
• Lowered Height: 10”
• Raised Height: 58”
• Service Range: 10” to 58”
• Power: 460V AC, 3-Phase
• Construction: Steel
• Lift Design: Tandem Dual Scissor
• Control Type: Hand Control
• Platform Access: Open Design for Loading and Unloading from All Sides
• Finish: Liquid Paint
• Color: Blue
• Approximate Weight: 2,513 lb


Features

• 2,000 lb uniform load capacity
• Large 48” × 180” platform accommodates oversized loads
• Dual scissor lift design provides added strength
• 10” to 58” variable working-height range
• Heavy-duty steel construction
• Open design permits loading and unloading from all sides
• Hand control allows operation from a distance
• 460V three-phase AC powered operation
• Designed for lifting and positioning large and heavy materials
• Durable liquid-painted finish


Applications

• Manufacturing Facilities
• Warehouses
• Distribution Centers
• Industrial Production
• Assembly Operations
• Large-Load Positioning
• Material Handling
• Packaging Operations
• Production Lines
• Industrial Workstations
